Ecor Pro 110v Industrial Dehumidifier

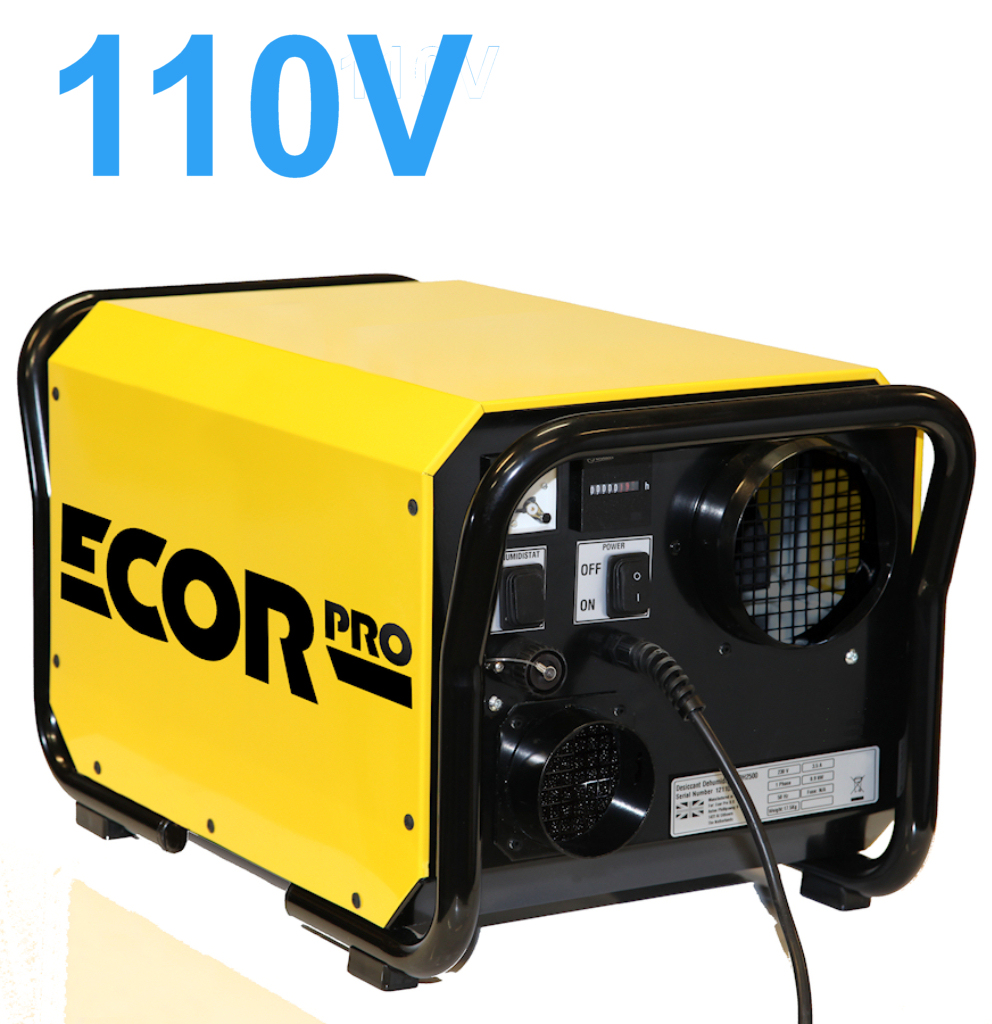

110V Industrial Dehumidifier DH3511
Designed in the UK as a unit fit for industrial drying. The DH3500 Ecor Pro 4 Hole desiccant dehumidifier and was built for use in the hire industry. Many configurations if installed. Input process air is dust filtered & dried. Input air can be ducted in with a 125mm duct (5″ inches). Wet exhaust air can be ducted out via a 80mm duct.

Category:

To hire this product please contact your local depot

Highly Compact – Perhaps the smallest 45 Litre dehumidifier in the market.
Dust Filter – The DH3511 desiccant industrial dehumidifier benefits from a simple reticulated dust filter in metal frame that can be shaken clean or easily replaced to prevent dust particles entering the unit and impeding performance.
Easy Repair – Maintenance and eventual repair have been thought through with an easy to remove cover that gives easy access to replace cord sets or warn parts by a qualified persons quickly. Prolonging the lifetime of the DH3511 dehumidifier. Cord sets can be replaced in around 20 minutes
On Four Feet – Anti scratch plastic feet
Carrying Handle – Easy to carry by one person. The handle can be removed if the product is being installed. The handles also protect the industrial dehumidifier duct flanges if in transit.
Humidistat Connection – The DH3511 has no humidistat but one can be added very simply. A military standard connector is on the front of the DH3511. To this the remote humidistat EPHUM220 can be screwed in place to switch on / off the dehumidifier at the humidity you set.
Duct Air-In & Out – The DH3511 has all ducts fitted with flanges to allow ducting to be added with 125mm hard or flexible ducting.
Regen Air- In & Out – The DH3511 has a second fan compared to the DH2511 which has only one. Both do not produce water. The moisture is vented away allowing it to work in colder temperatures. The moisture is purged from the system by “Regen” air. This air can be drawn from outside the room being dried. Both wet air-out and the regen air-in can be ducted away with 80mm ducting either hard or flexible.
“Four Hole System” – The system is classed as a “four hole” system due to the two inlets and two outlets. The advantage of a four hole system is that places can be dried pressure neutrally. The DH3511 can there for be used to dry large fridge freezer for instance.
Power Supply – 110V supply 50Hz
Auto Reset – If there is an interruption to the power supply, the DH3511 will continue to operate as soon as the power has been returned. Perfect in locations where the there is a “dirty” power supply that can affect other electronically controlled products.
All Metal Construction – Mild steel metal construction covered in corrosion resistant epoxy paint backed on for added paint strength inside & outside. Designed for longevity.
2 Meter Power Cord – no need to join cables when placed for instance in crawl spaces or lofts in the home for example

Weight 20.5000
Brand Ecor Pro
Power consumption (W) 1,500.00
Frequency (Hz) 50
Voltage (V) 110
Height (mm) 345
Width (mm) 352
Depth (mm) 560
Warranty (years) 2
Filter Yes
Timer No
Water Tank Full cut off No
Refrigerant No
Humidistat No
Tank Size (litres) 0.00
Ioniser No
LCD Display No
Electronic Controls No
Maximum Extraction 45.00
Operating Temperature (Deg C) -20~40
Noise Level (dB) 49
Compressor / Desiccant Desiccant
Carry Handle Yes
Continuous Drain Option Yes
Auto Restart Yes
Auto Defrost Yes
Adjustable Louvre (no / manual / electronic) No
